部署 k8s 集群
部署 k8s-device-plugin
选择最新的版本
配置 Nvidia docker runtime
1
2
3
4
5
6
7
|
"default-runtime": "nvidia",
"runtimes": {
"nvidia": {
"path": "nvidia-container-runtime",
"runtimeArgs": []
}
},
|
部署 RDMA 插件
方案一：使用阿里的镜像
来自文章：在Kubernetes上使用RDMA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
|
apiVersion: v1
kind: ConfigMap
metadata:
name: rdma-devices
namespace: kube-system
data:
config.json: |
{
"mode" : "hca"
}
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: rdma-device-plugin
namespace: kube-system
spec:
selector:
matchLabels:
name: rdma-sriov-dp-ds
template:
metadata:
annotations:
scheduler.alpha.kubernetes.io/critical-pod: ""
labels:
name: rdma-sriov-dp-ds
spec:
hostNetwork: true
tolerations:
- key: CriticalAddonsOnly
operator: Exists
containers:
- image: registry.cn-shanghai.aliyuncs.com/acs/rdma-device-plugin
name: k8s-rdma-device-plugin
imagePullPolicy: IfNotPresent
securityContext:
privileged: true
volumeMounts:
- name: device-plugin
mountPath: /var/lib/kubelet/device-plugins
- name: config
mountPath: /k8s-rdma-sriov-dev-plugin
volumes:
- name: device-plugin
hostPath:
path: /var/lib/kubelet/device-plugins
- name: config
configMap:
name: rdma-devices
items:
- key: config.json
path: config.json
|
结论
镜像版本太老了，而且没有 device plugin 的源代码，无法维护。但是设置 hostNetwork pod 是可以 running 起来的，节点上也有 hca 资源。所以该方案不推荐！
方案二 k8s-rdma-shared-dev-plugin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
|
apiVersion: v1
kind: ConfigMap
metadata:
name: rdma-devices
namespace: kube-system
data:
config.json: |
{
"periodicUpdateInterval": 300,
"configList": [
{
"resourceName": "hca_shared_devices_b",
"rdmaHcaMax": 500,
"selectors": {
"deviceIDs": ["101b"]
}
}
]
}
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: rdma-shared-dp-ds
namespace: kube-system
spec:
selector:
matchLabels:
name: rdma-shared-dp-ds
template:
metadata:
labels:
name: rdma-shared-dp-ds
spec:
hostNetwork: true
priorityClassName: system-node-critical
containers:
- image: ghcr.io/mellanox/k8s-rdma-shared-dev-plugin
name: k8s-rdma-shared-dp-ds
imagePullPolicy: IfNotPresent
securityContext:
privileged: true
volumeMounts:
- name: device-plugin
mountPath: /var/lib/kubelet/
- name: config
mountPath: /k8s-rdma-shared-dev-plugin
- name: devs
mountPath: /dev/
volumes:
- name: device-plugin
hostPath:
path: /var/lib/kubelet/
- name: config
configMap:
name: rdma-devices
items:
- key: config.json
path: config.json
- name: devs
hostPath:
path: /dev/
|
上面配置中，“deviceIDs”: [“101b”] 通过 cat /sys/class/infiniband/mlx5_2/device/device 命令查出来。

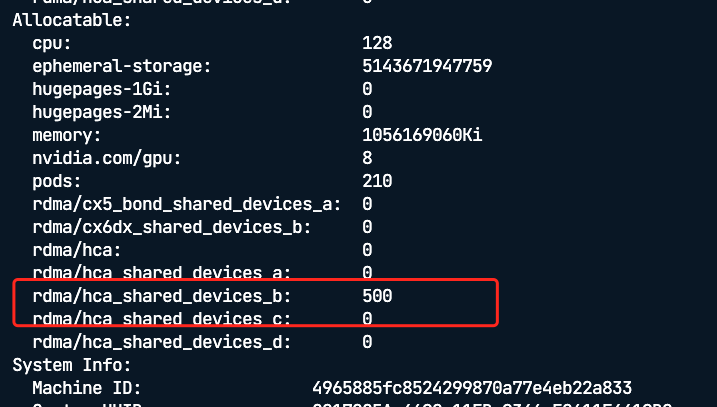

如何判断，device plugin 安装成功呢，describe node 发现资源挂载成功就可以了
方案二 测试
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
|
apiVersion: v1
kind: Pod
metadata:
name: mofed-test-pod
spec:
restartPolicy: OnFailure
nodeName: 10.106.124.3
hostNetwork: true
containers:
- image: mellanox/rping-test
name: mofed-test-ctr
securityContext:
capabilities:
add: [ "IPC_LOCK" ]
resources:
limits:
rdma/hca_shared_devices_b: 1
command:
- sh
- -c
- |
ls -l /dev/infiniband /sys/class/infiniband /sys/class/net
sleep 1000000
---
apiVersion: v1
kind: Pod
metadata:
name: mofed-test-pod2
spec:
restartPolicy: OnFailure
nodeName: 10.106.124.4
hostNetwork: true
containers:
- image: mellanox/rping-test
name: mofed-test-ctr
securityContext:
capabilities:
add: [ "IPC_LOCK" ]
resources:
limits:
rdma/hca_shared_devices_b: 1
command:
- sh
- -c
- |
ls -l /dev/infiniband /sys/class/infiniband /sys/class/net
sleep 1000000
|
1
2
3
|
ib\_read\_bw -q 30
ib\_read\_bw -q 30 10.106.156.3
|
1
2
3
|

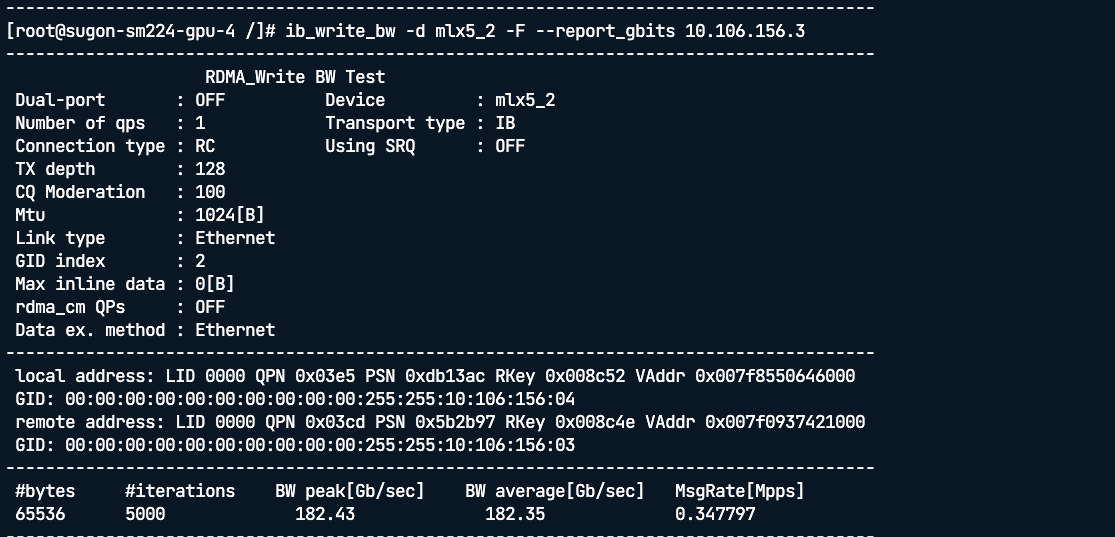

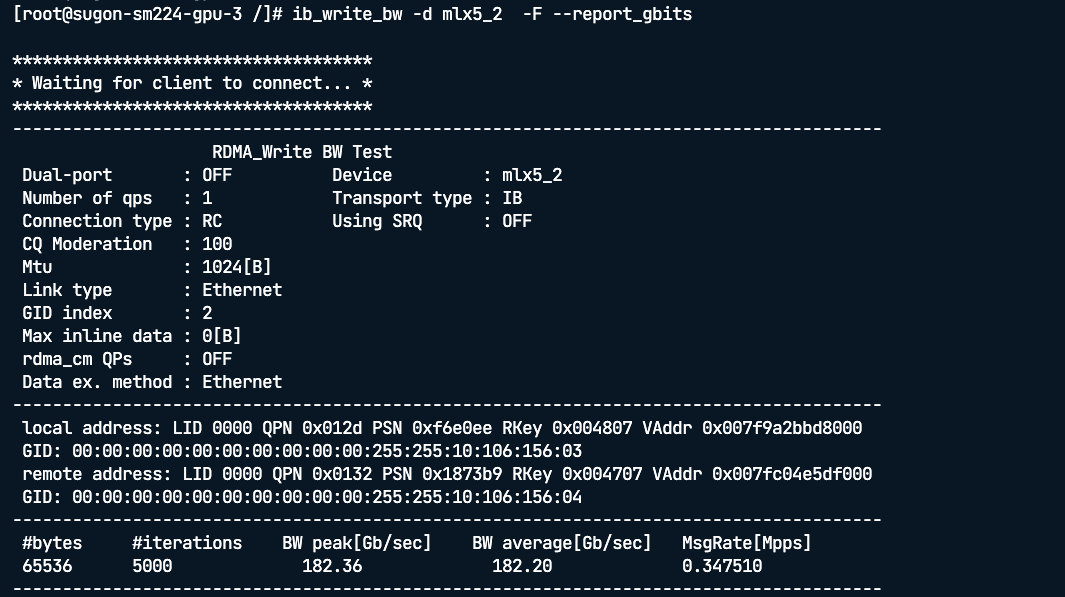

ib_write_bw -d mlx5_2 -F --report_gbits
ib_write_bw -d mlx5_2 -F --report_gbits 10.106.156.3
|
-
测试命令3
1
2
3
4
|
ib_send_bw -d mlx5_3 -i 1 -R --report_gbits
ib_send_bw -d mlx5_3 -i 1 -R --report_gbits 10.106.156.4
|
-
测试命令4
1
2
3
|

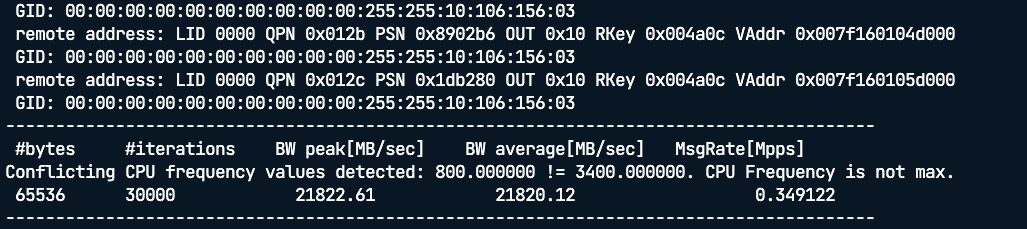

ib_write_bw -d mlx5_3 -a -F
ib_write_bw -F -d mlx5_3 10.233.92.6 -D 10 --cpu_util --report_gbits
|
常用命令
lspci -s 0000:17:00.0
参考文档
k8s RoCE 部署: k8s-rdma-shared-dev-plugin + macvlan cni
在Kubernetes上使用RDMA
device plugin
https://github.com/Mellanox/k8s-rdma-shared-dev-plugin 推荐
https://github.com/k8snetworkplumbingwg/sriov-network-device-plugin 牛哥使用的，star数最高
https://github.com/hustcat/k8s-rdma-device-plugin
Nvidia 文档
https://docs.nvidia.com/networking/display/COKAN10/K8s+on+Bare+Metal+-+Ethernet#
https://docs.nvidia.com/networking/category/solutions
deepspeed 训练方案
安装 arena
下载链接
1
2
3
4
5
|
tar -xvf arena-installer.tar.gz
cd arena-installer
./install.sh
|
安装存储
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
|
apiVersion: v1
kind: PersistentVolume
metadata:
name: training-data-pv
labels:
type: local
spec:
storageClassName: manual
capacity:
storage: 10Gi
accessModes:
- ReadWriteOnce
hostPath:
path: "/data"
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: training-data
spec:
storageClassName: manual
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 3Gi
|
构建训练镜像
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
|
From registry.cn-beijing.aliyuncs.com/acs/deepspeed:v072_base
From icmp.harbor/deepspeed/ngc:0905_1
# Install OpenSSH
RUN apt-get install -y --no-install-recommends openssh-client openssh-server && \
mkdir -p /var/run/sshd
# Allow OpenSSH to talk to containers without asking for confirmation
# by disabling StrictHostKeyChecking.
RUN sed -i 's/[ #]\(.*StrictHostKeyChecking \).*/ \1no/g' /etc/ssh/ssh_config && \
echo " UserKnownHostsFile /dev/null" >> /etc/ssh/ssh_config && \
sed -i 's/#\(StrictModes \).*/\1no/g' /etc/ssh/sshd_config
RUN apt update
RUN apt install -y ninja-build
WORKDIR /workspace
COPY DeepSpeedExamples .
|
打 TAG
1
2
|
kubectl label node 10.106.124.75 gpu-use-type=exclusive
kubectl label node 10.106.124.75 rdma=hca
|
提交训练任务
1
2
3
4
5
6
7
8
9
|
arena submit etjob \
--name=deepspeed-helloworld \
--gpus=1 \
--workers=2 \
--image=registry.cn-beijing.aliyuncs.com/acs/deepspeed:hello-deepspeed \
--data=training-data:/data \
--tensorboard \
--logdir=/data/deepspeed_data \
"deepspeed /workspace/DeepSpeedExamples/HelloDeepSpeed/train_bert_ds.py --checkpoint_dir /data/deepspeed_data"
|
1
2
3
4
5
6
7
8
9
10
|
arena submit etjob \
--name=deepspeed-helloworld \
--gpus=8 \
--workers=2 \
--image-pull-policy=IfNotPresent \
--image=icmp.harbor/deepspeed/zyg:0920 \
--data=training-data:/data \
--tensorboard \
--logdir=/data/deepspeed_data \
"sleep 1000000000"
|
1
2
3
4
5
6
7
8
9
10
11
12
13
|
arena submit etjob \
--name=deepspeed-helloworld \
--gpus=1 \
--workers=2 \
--image-pull-policy=IfNotPresent \
--image=deepspeedtest:v1 \
--data=training-data:/data \
--tensorboard \
--logdir=/data/deepspeed_data \
"sleep 1000000000"
--hostNetwork=true\
--rdma=true\
|
1
2
3
4
5
6
7
8
9
|
arena submit etjob \
--name=deepspeed-helloworld \
--gpus=1 \
--workers=2 \
--image=registry.cn-beijing.aliyuncs.com/acs/deepspeed:hello-deepspeed \
--data=training-data:/data \
--tensorboard \
--logdir=/data/deepspeed_data \
"sleep 1000000000"
|

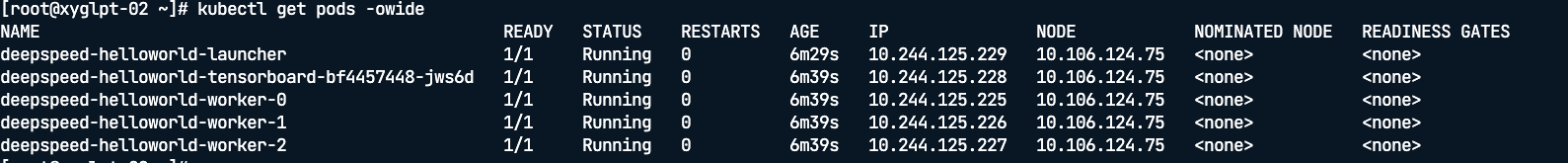

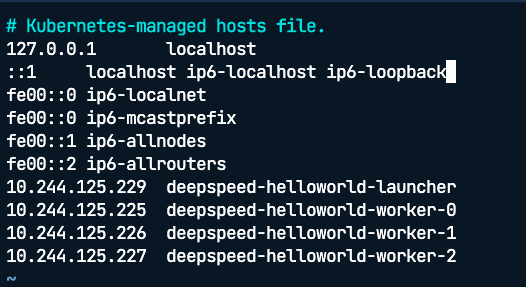

任务启动后，有一个 launcher pod ，在 pod /job/hostfile 里面有 worker 节点的信息。 按道理讲，launcher pod 可以 直接 ssh 到 其他 worker 节点的。但是集群的 DNS 有问题，只能在 launcher pod 修改 hostsfile
启动任务
1
2
3
4
|
deepspeed --master_addr=10.244.125.253 --hostfile=/job/hostfile benchmarks/communication/all_reduce.py --scan
deepspeed /workspace/DeepSpeedExamples/benchmarks/communication/all_reduce.py --checkpoint_dir /data/deepspeed_data
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
|
