开发一个自定义 k8s 调度插件

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95

package spacecloud

import (
	"context"
	"fmt"
	v1 "k8s.io/api/core/v1"
	"k8s.io/apimachinery/pkg/runtime"
	"k8s.io/klog/v2"
	"k8s.io/kubernetes/pkg/scheduler/framework"
)

const (
	Name     = "SpaceCloud"
	stateKey = Name + "StateKey"
)

type SpaceCloud struct {
}

var (
	_ framework.PreFilterPlugin = &SpaceCloud{}
	_ framework.FilterPlugin    = &SpaceCloud{}
)

// Name returns name of the plugin.
func (pl *SpaceCloud) Name() string {
	return Name
}

type CloudState struct {
	spaceWorkload bool
	node          string
	satellite     string
}

// 查看 pod 类型 ,是否是 spaceWorkload
func (pl *SpaceCloud) PreFilter(ctx context.Context, state *framework.CycleState, pod *v1.Pod) (*framework.PreFilterResult, *framework.Status) {
	c := CloudState{
		spaceWorkload: false,
		node:          "",
		satellite:     "",
	}
	if pod.Annotations["type"] == "space" {
		c.spaceWorkload = true
	}
	klog.Info("=======pod.Annotations", pod.Annotations["type"])
	klog.Info("=======spaceWorkload", c.spaceWorkload)
	state.Write(stateKey, &c)

	return nil, framework.NewStatus(framework.Success, "Check pod Annotations type , return")
}

func (pl *SpaceCloud) Filter(ctx context.Context, state *framework.CycleState, pod *v1.Pod, nodeInfo *framework.NodeInfo) *framework.Status {
	s, err := state.Read(stateKey)
	if err != nil {
		klog.Infof("Filter: pod %s/%s: read preFilter scheduling context failed: %v", pod.Namespace, pod.Name, err)
		return framework.NewStatus(framework.Error, fmt.Sprintf("read preFilter state fail: %v", err))
	}
	r, ok := s.(*CloudState)
	if !ok {
		return framework.NewStatus(framework.Error, fmt.Sprintf("convert %+v to stickyState fail", s))
	}
	klog.Info("=====", r.spaceWorkload)

	if nodeInfo.Node().Labels["kubernetes.io/role"] == "edge" {
		klog.Infof("====", nodeInfo.Node().Labels["kubernetes.io/role"])
	}

	return nil
}

func (c *CloudState) Clone() framework.StateData {
	return c
}

func New(_ runtime.Object, _ framework.Handle) (framework.Plugin, error) {
	return &SpaceCloud{}, nil
}

// PreFilterExtensions returns prefilter extensions, pod add and remove.
func (pl *SpaceCloud) PreFilterExtensions() framework.PreFilterExtensions {
	return pl
}

// AddPod from pre-computed data in cycleState.
// no current need for this method.
func (pl *SpaceCloud) AddPod(ctx context.Context, cycleState *framework.CycleState, podToSchedule *v1.Pod, podToAdd *framework.PodInfo, nodeInfo *framework.NodeInfo) *framework.Status {
	return framework.NewStatus(framework.Success, "")
}

// RemovePod from pre-computed data in cycleState.
// no current need for this method.
func (pl *SpaceCloud) RemovePod(ctx context.Context, cycleState *framework.CycleState, podToSchedule *v1.Pod, podToRemove *framework.PodInfo, nodeInfo *framework.NodeInfo) *framework.Status {
	return framework.NewStatus(framework.Success, "")
}

1

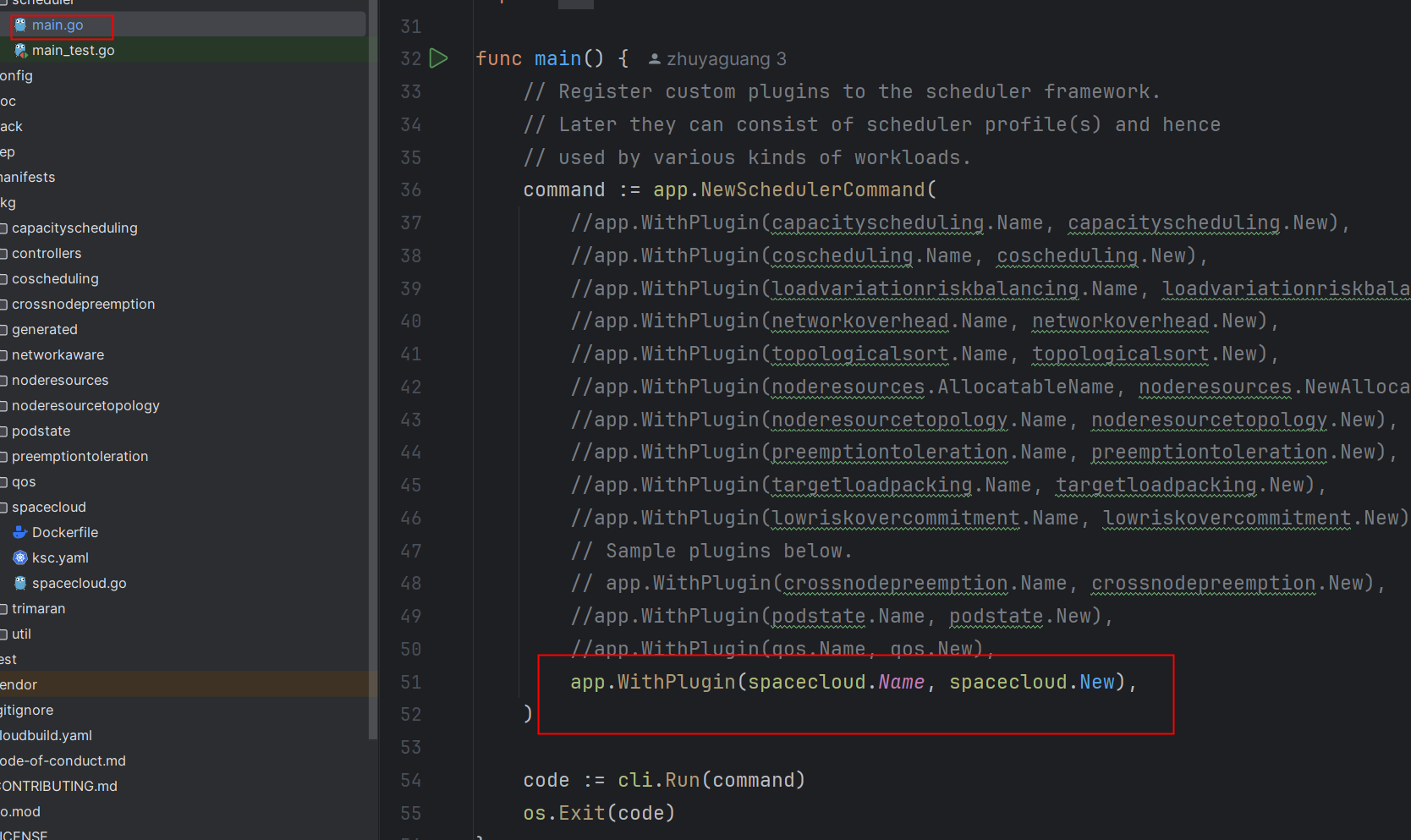

go build -ldflags '-s -w' -o bin/kube-scheduler ./main.go

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

apiVersion: kubescheduler.config.k8s.io/v1
kind: KubeSchedulerConfiguration
clientConnection:
  kubeconfig: "/etc/kubernetes/scheduler.kubeconfig"
profiles:
  - schedulerName: spacecloud
    plugins:
      preFilter:
        enabled:
          - name: SpaceCloud
        disabled:
          - name: "*"
      filter:
        enabled:
          - name: SpaceCloud
        disabled:
          - name: "*"
      reserve:
        disabled:
          - name: "*"
      preBind:
        disabled:
          - name: "*"
      postBind:
        disabled:
          - name: "*"

1

./bin/kube-scheduler --leader-elect=false --config ksc.yaml
